120077-01
FM Approved Sensor Kit

(for G2 & A1 meters)

$479.00
Lead Time: 1-3 Weeks
Features & Benefits
  • Designed for use with any G2 & A1 Turbine Meter when rotor pulse data is required and the meter is located within a hazardous location

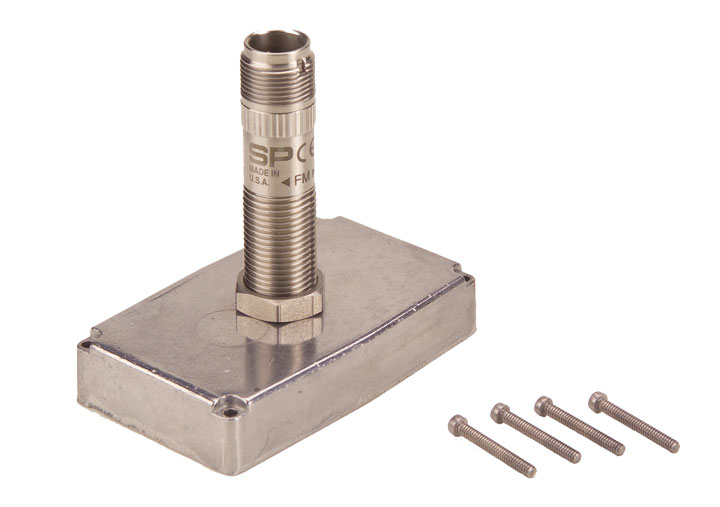

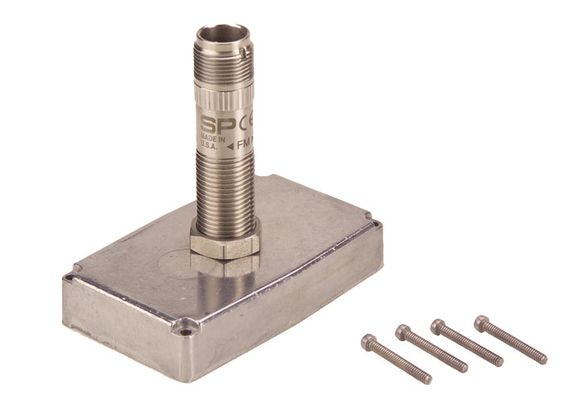

  • Consists of pickup, screws, cover plate, and jam nut only. (Does not include display or meter body)
  • REQUIRED: Must also order Connection Kit (PN 113524-01) and Output Cable Kit (PN 125066-500), a 100 ft 3-wire cable for Conditioned Signal Output Module, 4-20mA Module and Pulse Access Module. Please contact us to order.
  • Signal Type: Open Collector (NPN); Frequency: 5 to 10 Hz; Cable: None provided - 3 conductor required for use; Power: 5.8 to 30 VDC; Supply Current: <= 15 mA


For specifications, see Catalog Page link on left side
