A109GMX200XB3

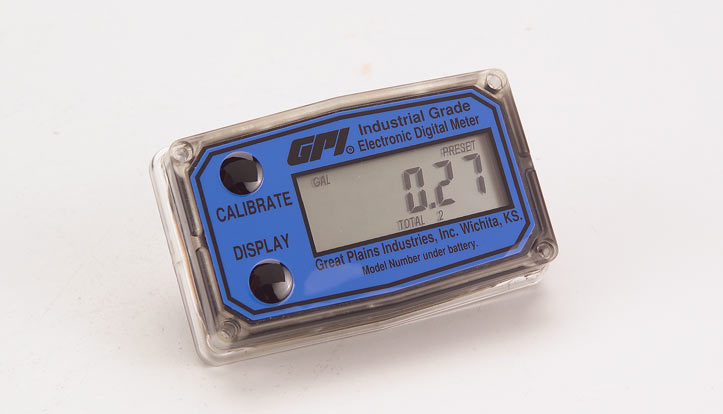

09 Computer Display for A1 2" Aluminum Body (30-300 GPM)

(See new model A1R9GMX200XB3)

No longer available.

Lead Time: Contact us
See New/Alternate Model No: View
Features & Benefits
  • Kit consists of Computer Display, batteries, O'ring seal, gasket, screws, manual and declaration of conformity
  • Fits A1 Aluminum 2" body only. Replaces LCD computer display labeled A109GMA200NA2, A109LMA200NA2 or A109GMX200XB3.
  • LCD Computer Display programmed to display in Gallons Per Minute. Flowrate display updates every 5 seconds, readout is in units/minute. Factory Calibration in gallons and liters is standard. Can be field calibrated to adjust to various fluid viscosities. Correction calibration lets end user calibrate by ± percent off.
  • Internal Power: (2) 3V Lithium batteries. Battery life (5 years); Std Factory Configuration: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and liters; Totalizing Registers: 0 to 2; K-Factor Limits: Min: .01 pulses/unit Max: 999,999 pulses/unit; Field Calibrate by user. Standard Method: Correction Factor. Six adjustable digits. Can be reconfigured to K-factor entry; Readouts: LCD with floating decimal Minimum Display = 0.01 units Maximum Display = 999,999 units (6 digits); Impulse Rate: Minimum (Pulse-in Input) = DC (0 Hz) Minimum (Coil Input) = Approximately 10 Hz Maximum = Approximately 1,000 Hz; Storage Temperature: -40 F to 158 F (-40 C to 70 C); Note: Part number is dependent on material and size of flow meter.


0 F to 140 F (-18 C to 60 C)
