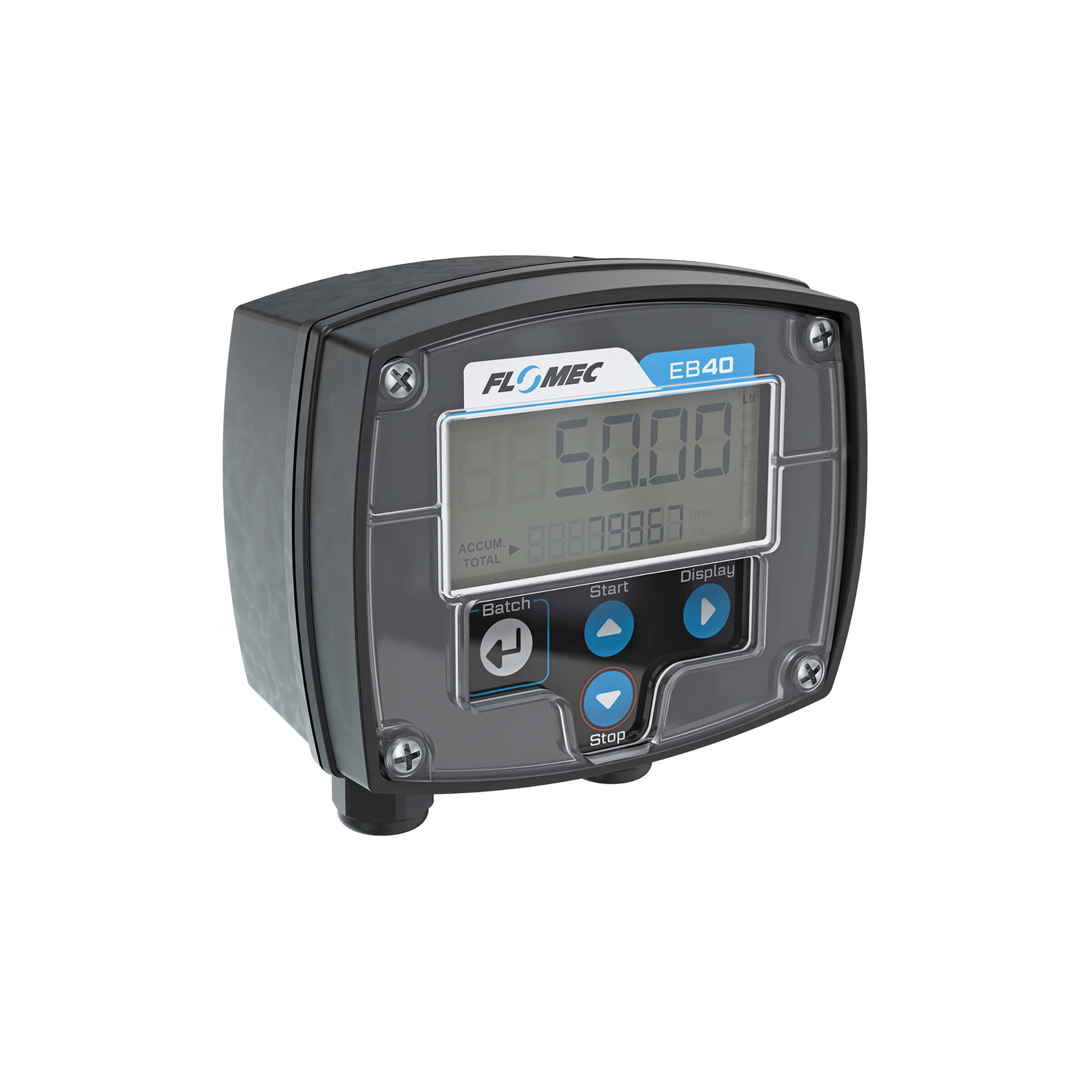

EB406D0FM
Easybatch single stage DC batch controller
$446.00
Features & Benefits
- Display: Dual Line LCD (Top: 6 characters x 17 mm / Bottom: 8 characters x 7 mm)
- Housing: Glass Reinforced Nylon (IP66/67)
- Entries: 3x 16mm drilled holes
- Input: Pulse/frequency
- Output: NPN (open collector, sinking), 30V (DC) / 5A max
- External DC Power: Regualted 12 - 30 V (DC) (Typical Draw: 100mA across range)
- Backup Battery Power: AA (14505) 3.6V Lithium Thionyl Chloride
- Operating Temp: -22°F to 176°F (-30°C to 80°C)
