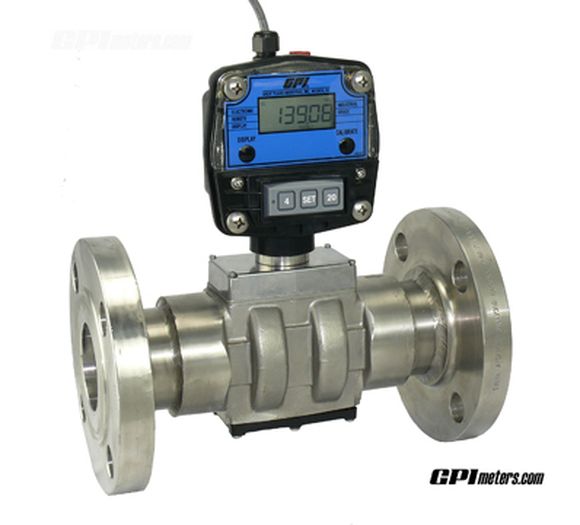

G2S10F-GX510
1" 150 lb ANSI Flange 316SS (see new model)
Search for model G2S10FQ9GMD (In Stock)
Rate & Totals + 4-20mA Output G2 Series - INDUSTRIAL GRADE METER
Main Specifications
Connection Size: 1"
Connection Type: 150 lb ANSI Flange
Flow Range: 5 - 50 GPM (18.9 - 190 LPM)
See new model
G2S10FQ9GMD
See new model
G2S10FQ9GMD
Pressure Rating: 255 PSI @ 140°F, 275 PSI @ 100°F
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C)
Meter Body Size: 1"
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Flow Meter Type: G2 Series - INDUSTRIAL GRADE METER
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Rate & Totals + 4-20mA Output
Benefits & Features: Excellent Chemical Compatibility, Accurate, Durable, 6 Digit Display - Floating Decimal, Rate of Flow, Batch & Cumulative Totals, Factory Calibrated and Field Calibratable, Add-On Output Options, Replaceable Internal Meter Body Parts, Choice of Gallons or Liters, Easier to program 4-20mA Output than the 125100-1 Module, Custom Programmable Display (including UOM)
Extended Flow Range: 50 - 75 GPM (190 - 284 LPM)*
Max Pressure Drop (at Max Flow in test conditions): 9.7 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 1.0%
Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.5%
Repeatability (based on test conditions): ± 0.1%
Maximum Viscosity: 100 cps**
Recommended Strainer Size: 120 Mesh (125 Microns)
Max. Particle Size: .018" / .457 mm
Operating Temp Without Local Computer or With Remote Computer: -40 to 212°F (-40 to 100°C) [Opt'l]
Housing Material: 316SS (see new model) <br><br>Search for model G2S10FQ9GMD (In Stock)
Bearings: 96% Alumina Ceramic/Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Typical K-Factor PPG (PPL): 565 (149)
Local Module & Output Signal: 4-20mA Transmitter
Remote Output: None
Sensor (Pickup): Magnetic
External Power: 2-Wire Loop Powered 8.5-35 VDC
Frequency Range: 47 - 470 Hz
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): Water, Chemicals, Fuel Products
Not Suitable For Applications: DI Water; Oils, especially those heavier than 10W (100cps), Fluctuating viscosities**
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds
Minimum Straight Pipe Dia.s: 10" Upstream / 5" Downstream
Desired Straight Pipe Dia.s: 20" Upstream / 10" Downstream
Connection to Connection Length (OAL): 6.75" (171 mm)
Shipping Weight (Approximate): 10.4 lbs (4.7 kg)
Approvals Notes: Not available with FM approval
