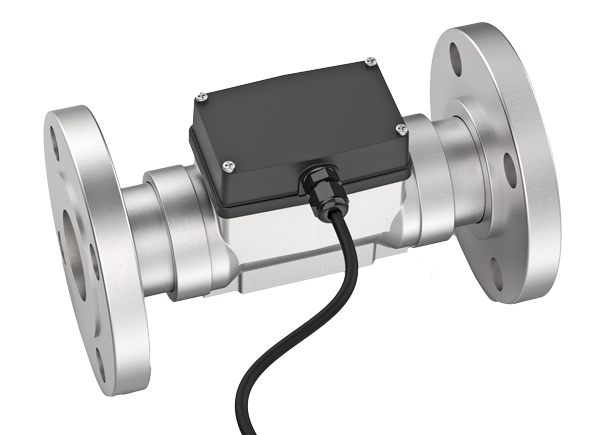

G2S10FPOXXY 316SS Flow Meter 1" Flanged Pulse Out Only
1" 150 lb ANSI Flange
Pulse Out
$1325.00
Main Specifications
Connection Size: 1"
Connection Type: 150 lb ANSI Flange
Flow Range: 5 - 50 GPM (18.9 - 190 LPM)
Operating Temp With Local Computer:
0 to 140°F (-18 to 60°C) for SAFE AREA ONLY (Non-FM Approved)
See Catalog Page link to the left
0 to 140°F (-18 to 60°C) for SAFE AREA ONLY (Non-FM Approved)
See Catalog Page link to the left
Local/Remote Display: Pulse Out Only - No Display
Display Type: Pulse Out Only - No Display
Factory Calibrated For: Water like fluids
Product Type: Pulse Out
Std Calibration Reports Included: Yes
Benefits & Features: Excellent Chemical Compatibility; Accurate; Durable; Replaceable Internal Meter Body Parts; Unscaled NPN Open Collector Pulse
Max Pressure Drop (at Max Flow in test conditions): 9.7 PSI
Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.5%
Repeatability (based on test conditions): ± 0.1%
Recommended Strainer Size: 120 Mesh (125 Microns)
Max. Particle Size: .018" / .457 mm
Operating Temp Without Local Computer or With Remote Computer: -40 to 250°F (-40 to 121°C) [Opt'l]
Extended Flow Range: 50 - 75 GPM (190 - 284 LPM)<br>[Accuracy of the extended flow range declines and is not guaranteed]<br>Overranging damages meter and voids warranty
Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
Bearings: 96% Alumina Ceramic/Tungsten Carbide
Shaft: Tungsten Carbide
Rotor: PVDF
Signal Generator: Not Wetted
Retaining Rings: 316SS
Typical K-Factor PPG (PPL): 565 (149)
Sensor (Pickup): Magnetic
Battery Power: None
External Power: Requires 5VDC to 26VDC
Frequency Range: 47 - 470 Hz
Application Notes: Unidirectional but Display can be rotated 180°, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line should be kept full (no air) for proper accuracy
Piping Notes: If cavitation affects accuracy, try a flow control valve downstream of meter
Connection to Connection Length (OAL): 6.75" (171 mm)
Shipping Weight (Approximate): 7.8 lbs (3.6 kg)
Approvals Notes: See catalog page for full approval specs
