G2X15XQ9GMA

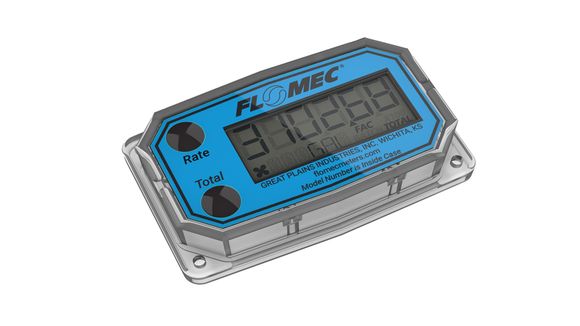

Q9 Computer Display for G2 1-1/2" Metal Body

(Replacement for Q9 computer display only)

$432.00
In Stock
Lead Time: 1-2 Days
Features & Benefits
  • Kit consists of Computer Display, batteries, O'ring seal, gasket, screws, manual and declaration of conformity (does not contain sensor)
  • Fits G2 metal bodies with no plastic backplate on back, sizes 1-1/2" NPTF, 1-1/2" Flanged or 2" Tri-Clamp connections only. The model number on the back side must have Q9 in it as it replaces the Q9 computer display.
  • LCD Computer Display programmed to display in Gallons Per Minute. Flowrate display updates every 5 seconds, readout is in units/minute. Factory Calibration in gallons and liters is standard. Can be field calibrated to adjust to various fluid viscosities. Correction calibration lets end user calibrate by ± percent off.
  • Internal Power: (2) 1.5V Alkaline batteries. Battery life (2 years); Std Factory Configuration: 2 Totals (1 Resettable, 1 Cumulative); Factory Calibration in gallons and liters; User Calibration and Rate of Flow Indication; Totalizing Registers: 0 to 2; K-Factor Limits: Min: .01 pulses/unit Max: 999,999 pulses/unit; Field Calibrate by user. Standard Method: Correction Factor. Six adjustable digits. Can be reconfigured to K-factor entry; Readouts: LCD with floating decimal Minimum Display = 0.01 units Maximum Display = 999,999 units (6 digits); Impulse Rate: Minimum (Pulse-in Input) = DC (0 Hz) Minimum (Coil Input) = Approximately 10 Hz Maximum = Approximately 1,000 Hz; Storage Temperature: -40 F to 158 F (-40 C to 70 C); Note: Part number is dependent on material and size of flow meter.
  • IF NOT CERTAIN THAT YOU ARE REPLACING THE Q9 COMPUTER DISPLAY, PURCHASE PART NO. G2X15XR9GMA


0 F to 140 F (-18 C to 60 C)
