OM004S511-822A0
1/8" NPT Female
$1020.00
Main Specifications
Connection Size: 1/8"
Connection Type: NPT Female
Flow Range: 0.13 - 9.5 GPH (0.5 - 36 LPH)
Pressure Rating: 220 PSI (15 Bar)
Meter Body Size: 1/8"

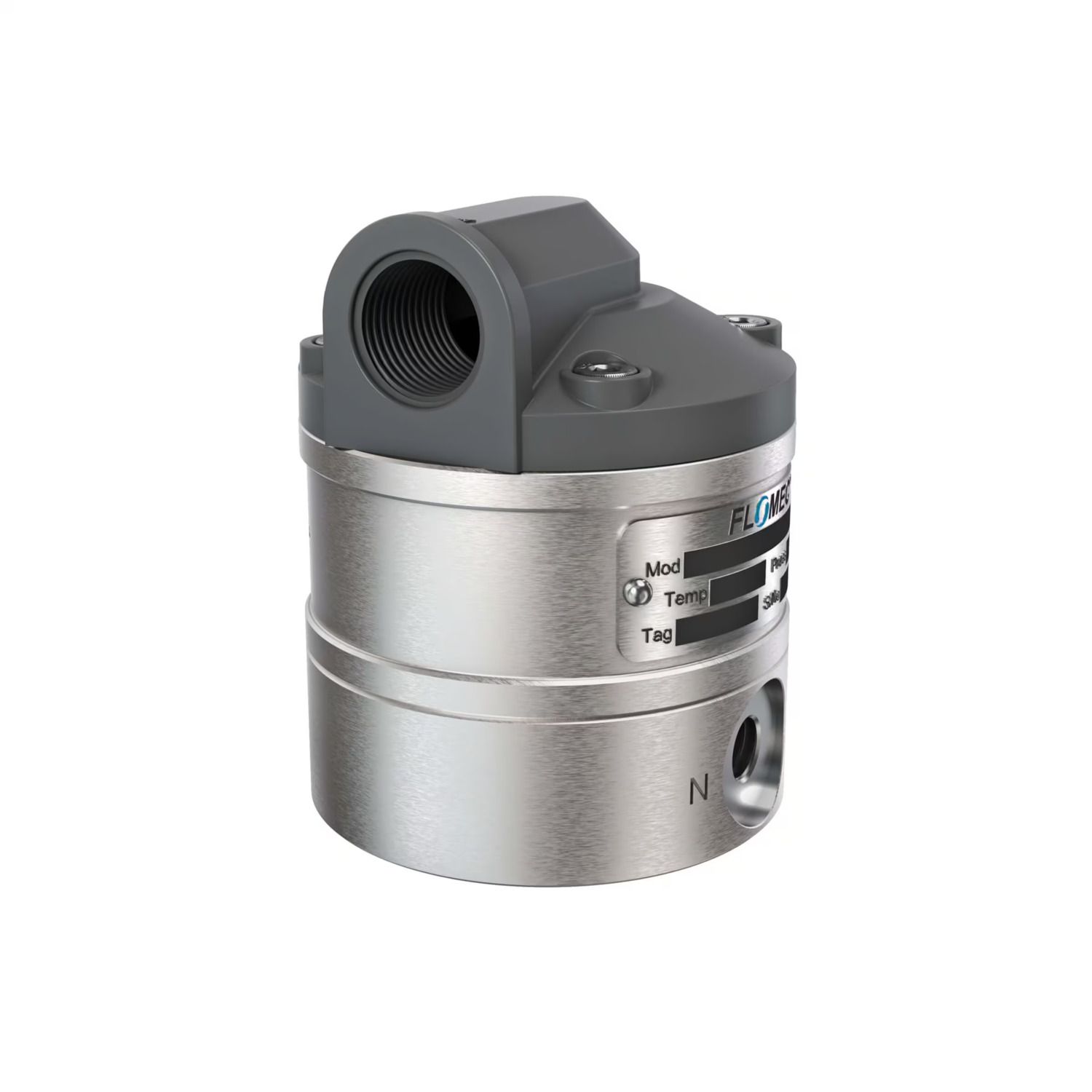

Design: Oval Gear Meter w/ Blind 4-20mA Output
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Benefits & Features: Excellent for applications with fluctuating or multiple viscosities - No field calibrating required; Accuracy: ± 1% Of Reading; Up to 1,000 cps Viscosity; No straight pipe requirements; Bi-directional; SS Rotors are very stable with increasing temperatures
Accuracy (% of Reading) Factory Calibrated Body Only: ± 1.0%
Repeatability (based on test conditions): ± 0.03%
Maximum Viscosity: 1,000 cps (Up To 1,000,000 cps within derated flow range)
Operating Temp Without Local Computer or With Remote Computer: 5 to 176°F (-15 to 80°C)
