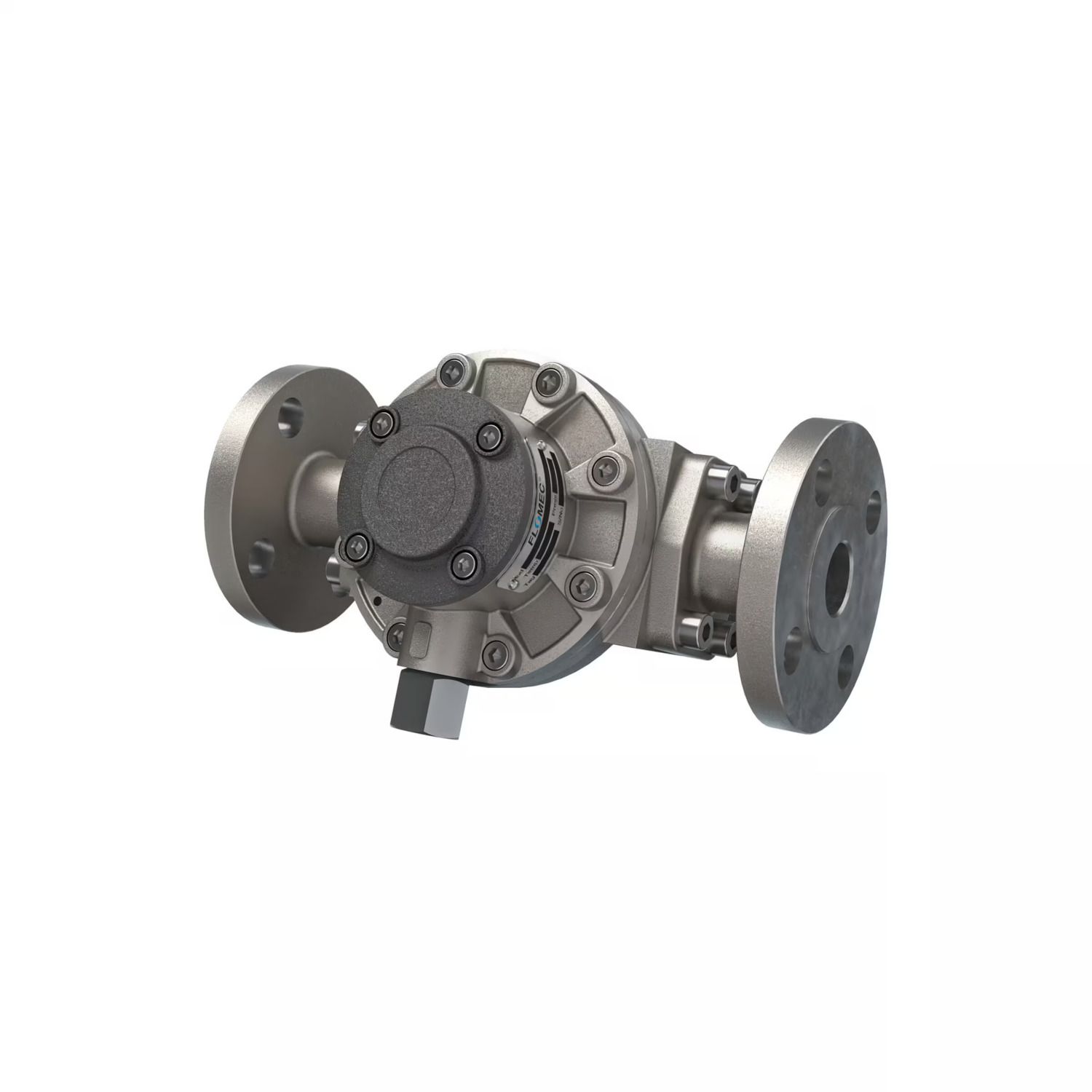

OM025S001-842A0
1" 150 lb ANSI Flange
$2397.00
Main Specifications
Connection Size: 1"
Connection Type: 150 lb ANSI Flange
Flow Range: 2.6 - 40 GPM (10-150 LPM)
Meter Body Size: 1"
Design: Oval Gear Meter w/ Blind 4-20mA Output
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Benefits & Features: Excellent for applications with fluctuating or multiple viscosities - No field calibrating required; Accuracy: ± 0.5% Of Reading; Up to 1,000 cps Viscosity; No straight pipe requirements; Bi-directional; PPS Rotors are immune to galling (adhesive wear); PPS Rotors produce less noise than metal rotors
Accuracy (% of Reading) Factory Calibrated Body Only: ± 0.5% *
Repeatability (based on test conditions): ± 0.03%
Maximum Viscosity: 1,000 cps (Up To 1,000,000 cps within derated flow range)
Operating Temp Without Local Computer or With Remote Computer: 5 to 176°F (-15 to 80°C)
