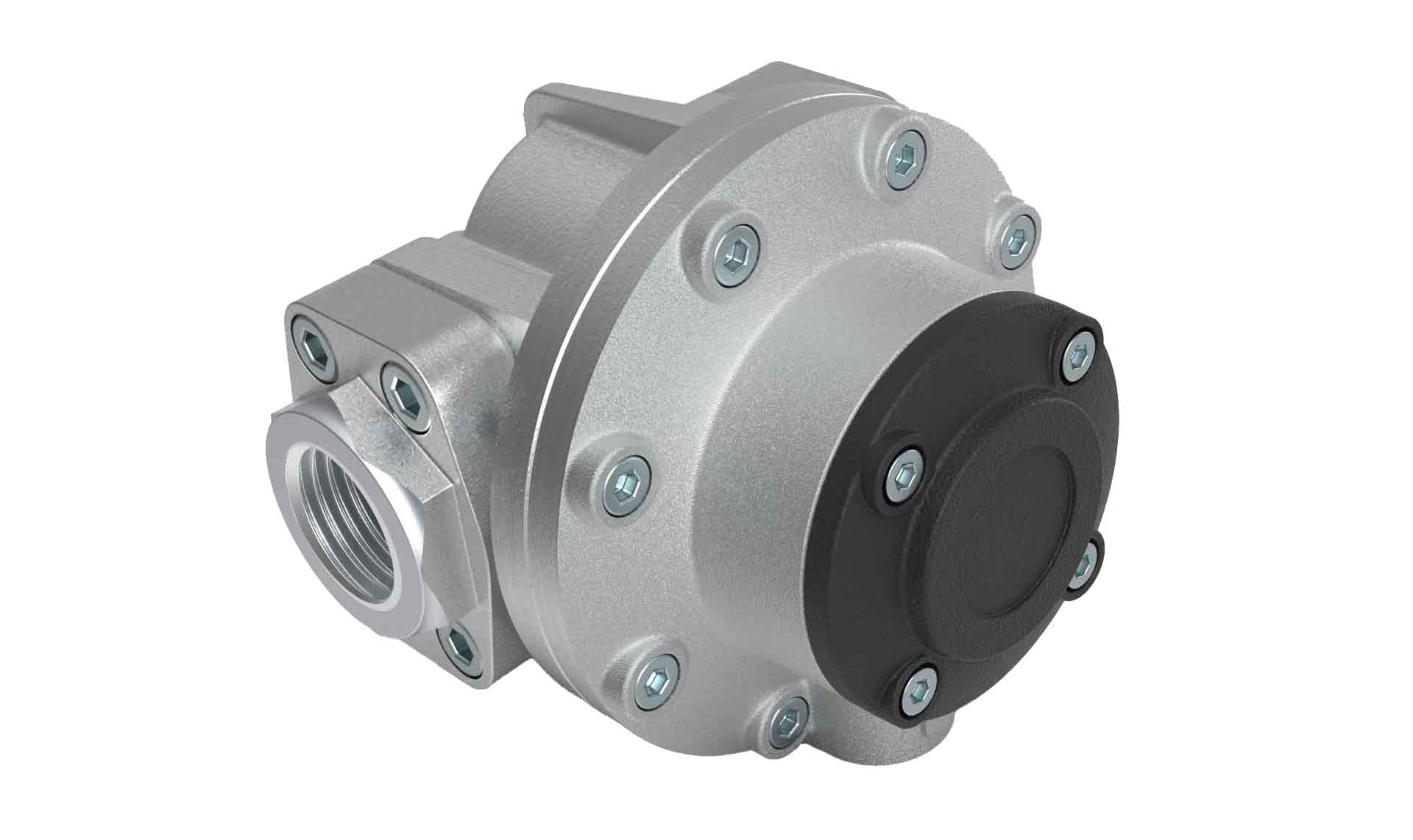

OM040A101-222

1-1/2" NPT Female Aluminum

Pulse Out OM Series - OVAL GEAR - HIGH VISCOSITY

$1542.00
Lead Time: 4-6 Weeks
Main Specifications
Connection Size: 1-1/2"
Connection Type: NPT Female
Flow Range: 4 - 66 GPM (15-250 LPM)
Pressure Rating: 435 PSI (30 Bar)
Meter Body Size: 1-1/2"
Local/Remote Display: None
Display Type: None
Flow Meter Type: OM Series - OVAL GEAR - HIGH VISCOSITY
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Product Type: Pulse Out
Benefits & Features: Excellent for applications with fluctuating or multiple viscosities - No field calibrating required; Accuracy: ± 0.5% Of Reading; Up to 1,000,000 cps Viscosity; No straight pipe requirements; Bi-directional; PPS Rotors are immune to galling (adhesive wear); PPS Rotors produce less noise than metal rotors
Max Pressure Drop (at Max Flow in test conditions): Contact us
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5% @ 3cp
Repeatability (based on test conditions): ± 0.03%
Maximum Viscosity: 1,000,000 cps
Recommended Strainer Size: 100 Mesh (150 Microns)
Max. Particle Size: .006" / .149 mm
Operating Temp Without Local Computer or With Remote Computer: 5 to 250°F (-15 to 120°C)
Housing Material: Aluminum
Bearings: None
Shaft: Stainless Steel
Seals: FKM (Viton™)
Rotor: PPS (Hi Viscosity)
Typical K-Factor PPG (PPL): Reed: 53 (14), Hall Effect: 212 (56)
Local Module & Output Signal: Open Collector (NPN) Unscaled Pulse
Remote Output: None
Sensor (Pickup): Reed Switch / Hall Effect<br>[Hall Effect Sensor requires dedicated power source]
Applications (always check Chemical Compatibility Guide): Metering clean fluids such as Oils, Grease, Fuels, Fuel Oils, Lubricating Liquids
Not Suitable For Applications: Water, dirty liquids
Minimum Straight Pipe Dia.s: None
Desired Straight Pipe Dia.s: None
Application Notes: The meter may be mounted horizontally or vertically but must be mounted, so the rotor shafts are in a horizontal plane (see manual), For viscous liquids, the maximum allowable flow may need to be reduced to ensure the pressure drop across the meter does NOT exceed 15 PSI, Viscosities <3cps, min. flow range is 10% of the maximum flow range, Line must be full (no air) for proper accuracy
Connection to Connection Length (OAL): 7.4" (188mm)
Shipping Weight (Approximate): 12 lbs (5.4 kg)
Approvals Notes: CE Approval is applied when meter is part of a system
