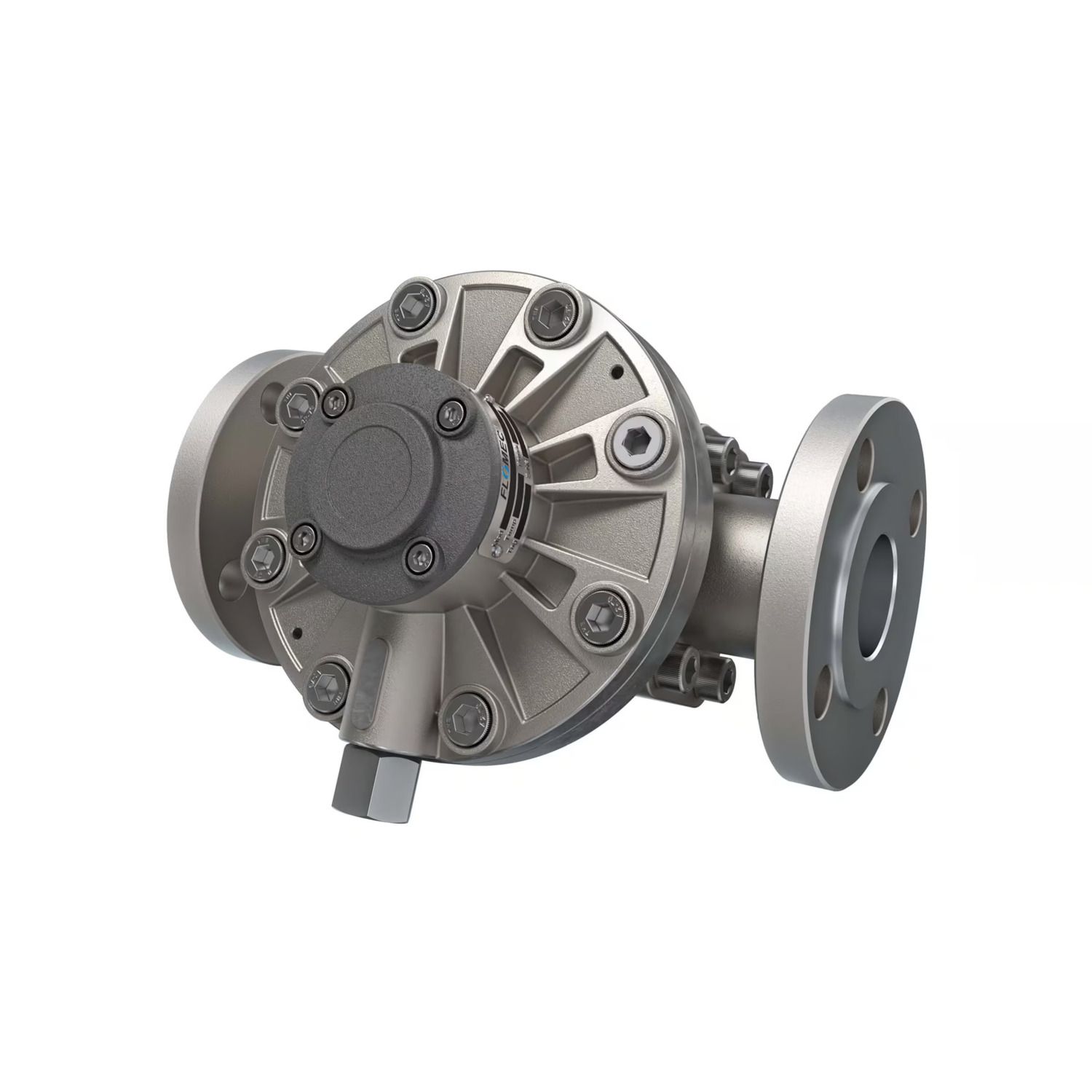

OM040S001-842A0
1-1/2" 150 lb ANSI Flange
$3667.00
Main Specifications
Connection Size: 1-1/2"
Connection Type: 150 lb ANSI Flange
Flow Range: 4 - 66 GPM (15-250 LPM)
Meter Body Size: 1-1/2"
Design: Oval Gear Meter w/ Blind 4-20mA Output
Std Calibration Reports Included: Yes
Warranty Period: 1 Year
Benefits & Features: Excellent for applications with fluctuating or multiple viscosities - No field calibrating required; Accuracy: ± 0.5% Of Reading; Up to 1,000 cps Viscosity; No straight pipe requirements; Bi-directional; PPS Rotors are immune to galling (adhesive wear); PPS Rotors produce less noise than metal rotors
Accuracy (% of Reading) Factory Calibrated Body Only: ± 0.5% *
Repeatability (based on test conditions): ± 0.03%
Maximum Viscosity: 1,000 cps (Up To 1,000,000 cps within derated flow range)
Operating Temp Without Local Computer or With Remote Computer: 5 to 176°F (-15 to 80°C)
