Benefits & Features: Excellent for applications with fluctuating or multiple viscosities - No field calibrating required; Accuracy: ± 1% Of Reading; Up to 1,000 cps Viscosity; No straight pipe requirements; SS Rotors are very stable with increasing temperatures; Cumulative & Resettable Batch Totals

Max Pressure Drop (at Max Flow in test conditions): Contact us

Accuracy (% of Reading) Factory Calibrated with Computer: ± 1% @ 3cp

Repeatability (based on test conditions): ± 0.03%

Maximum Viscosity: 1,000 cps

Recommended Strainer Size: 100 Mesh (150 Microns)

Max. Particle Size: .006" / .149 mm

Housing Material: 316LSS

Bearings: Carbon Ceramic

Shaft: Stainless Steel

Rotor: PPS

Seals: FKM (Viton™)

Display Function: Cumulative & Resettable Batch Totals

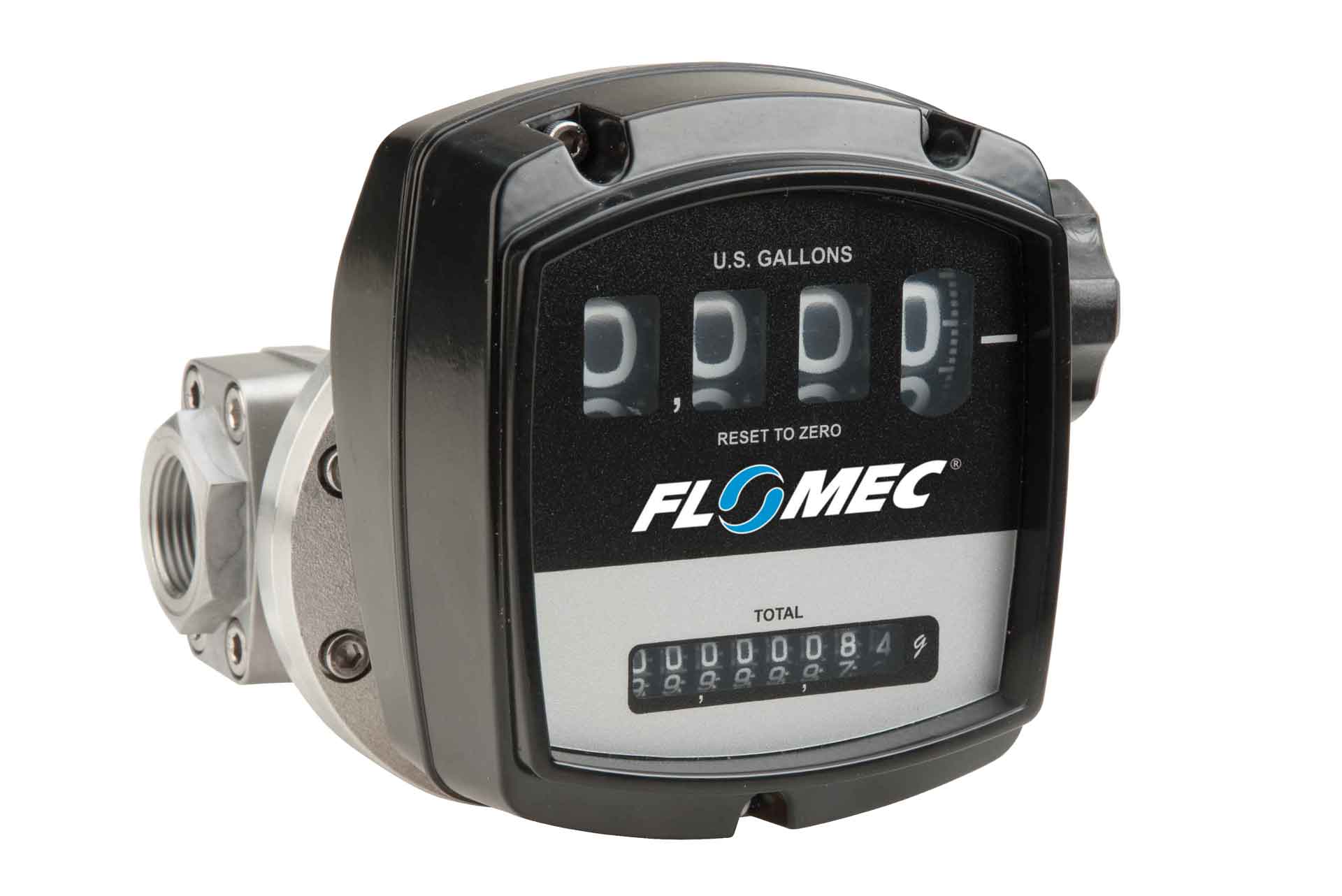

LCD Digits: 4 & 8 (Mechanical Digits)

Totalizing Display Starting Increment: 1

Totalizing Resets to 0 After Reaching: 99999999

Applications (always check Chemical Compatibility Guide): Metering clean fluids such as water based liquids for Chemical, Cosmetic, Food, and Pharmaceutical Industries

Not Suitable For Applications: Dirty liquids

Minimum Straight Pipe Dia.s: None

Desired Straight Pipe Dia.s: None

Application Notes: The meter may be mounted horizontally or vertically but must be mounted, so the rotor shafts are in a horizontal plane (see manual), For viscous liquids, the maximum allowable flow may need to be reduced to ensure the pressure drop across the meter does NOT exceed 15 PSI, Viscosities <3cps, min. flow range is 10% of the maximum flow range, Line must be full (no air) for proper accuracy

Connection to Connection Length (OAL): 8.3" (212mm)

Shipping Weight (Approximate): 36 lbs (16.3 kg)

Approvals Notes: CE Approval is applied when meter is part of a system
