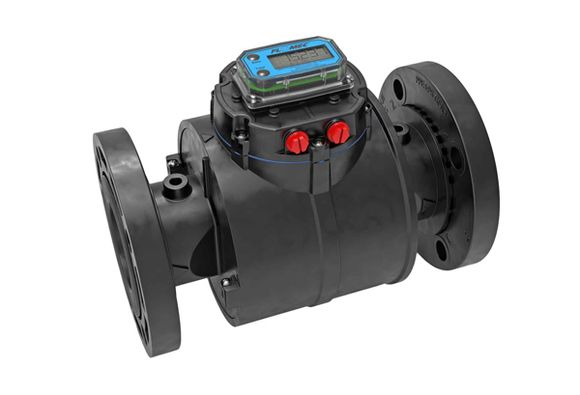

QSE40FAP42XXXC Mag Meters 4" Flanged Display & 4-20mA Out

4" ANSI Flange - Polymer

Rate & Totals & 4-20mA Output

$2651.00
Lead Time: 2-3 Weeks
Main Specifications
Connection Size: 4"
Connection Type: ANSI Flange - Polymer
Flow Range: 10 - 600 GPM (38 - 2271 LPM)
Operating Temp With Local Computer: 32° to 140°F (0° to 60°C)
Local/Remote Display: Local
Display Type: Digital LCD
Product Type: Rate & Totals & 4-20mA Output
Benefits & Features: Non-Intrusive, No moving parts to wear out, Low maintenance and repair costs, High Accuracy with quick response time, Can measure with up to 20% solids, Tolerates high flows without damage, Very low pressure drop, Wide turn-down ratio, NIST Reports standard at N/C
Std Calibration Reports Included: Yes - NIST<br>[NIST Certs come with each meter at no extra charge. Please inquire for certificate's date of our stocked meters.]
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5%
Accuracy (% of Reading) Factory Calibrated Body Only: ± 0.5% *
Max. Particle Size: 20% Solids Maximum
Max Pressure Drop (at Max Flow in test conditions): Negligible
Seals: NBR (Non-Wetted)
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Totalizing Resets to 0 After Reaching: 99999999
Typical K-Factor PPG (PPL): 68.1
Sensor (Pickup): Electrodes
Battery Power: Requires External Power
External Power: 12-36 VDC
Frequency Range: 10 Hz Minimum - 1,000 Hz Maximum
Remote Output: Optional Remote Display, 4-20mA or Pulse Out (Please contact us)
Piping Notes: Optimal horizontal position: top of meter at 1 or 2 o'clock
Application Notes: Unidirectional. For horizontal or vertical flows. Do not allow liquids to dry or freeze inside of the meter. NOTE: Requires grounding. See Earth Ground Instructions manual.
Connection to Connection Length (OAL): 12.00" (304.8mm)
Shipping Weight (Approximate): 19 lbs (8.6 kg)
Approvals Notes: IP67, CE, CSA
