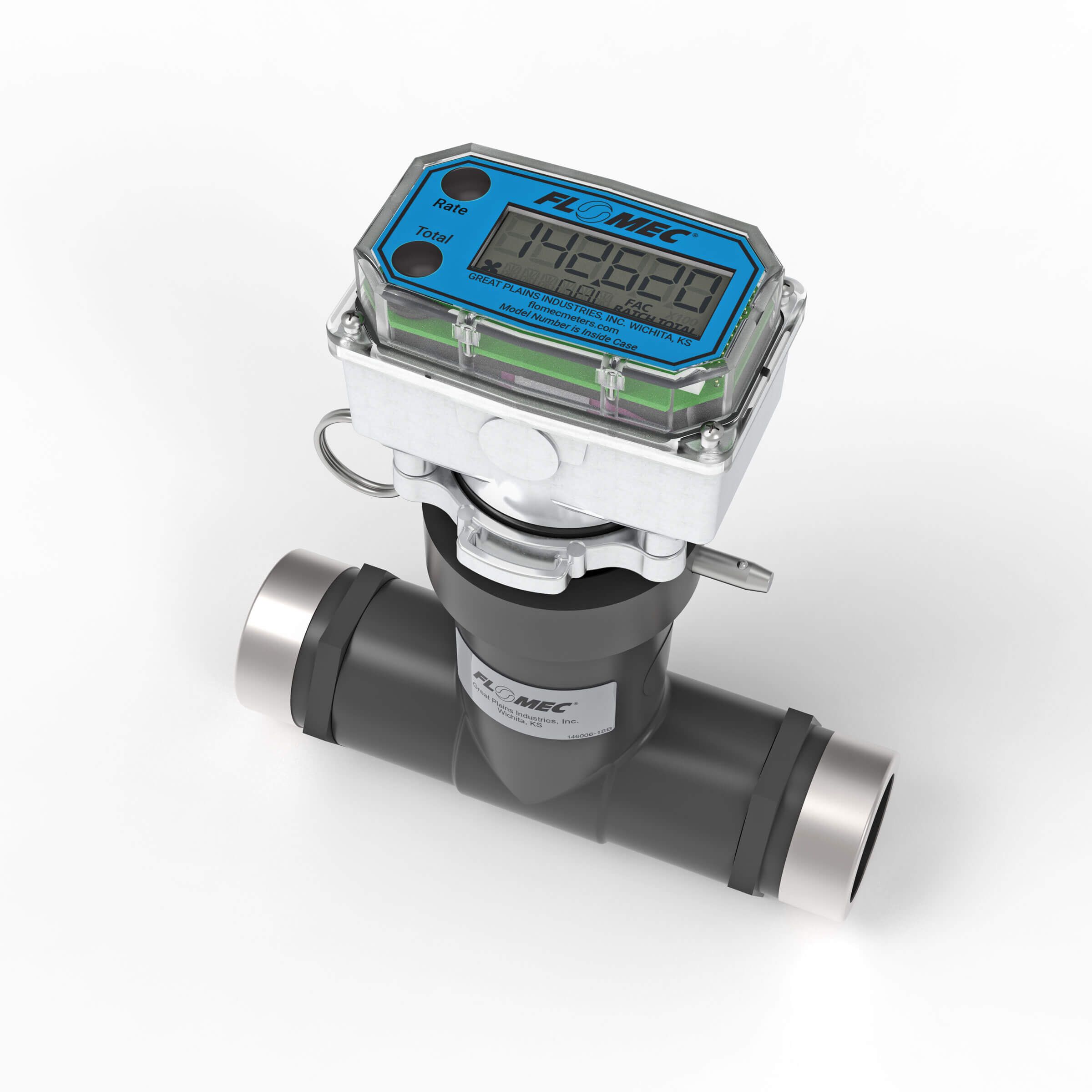

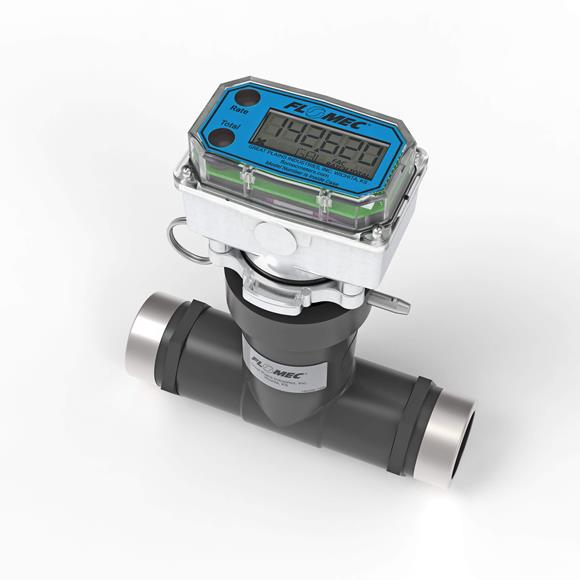

UM-025-N-Q AQUASONIC Meter PVC 1"
1" NPT Female Sch 80 PVC
Ultrasonic Meter w/ Local Display (Rate & Totals); In-Line, Battery Only
$1302.00
Main Specifications
Connection Size: 1"
Connection Type: NPT Female
Flow Range: 0.22-33 GPM (0.83-124.92 LPM) - 0.1 to 15 fps (0.03 to 4.57 m/s)
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C) Do not allow to freeze
Pressure Rating: 203 PSI (14 bar) @ 73°F, 150 PSI (10 bar) @ 140°F
Product Type: Ultrasonic Meter w/ Local Display (Rate & Totals); In-Line, Battery Only
Meter Body Size: 1"
Body Type: PVC Tee
Display Type: Digital LCD
Factory Calibrated For: Water
Design: Ultrasonic Meter w/ Battery Powered Display
Benefits & Features: Battery Powered Ultrasonic Meter; Easy Installation; No moving parts; High Accuracy ±2% of reading); Low Flow Rates; Compatible with most common name brand irrigation controllers; Extended leak detection down to 0.1 fps; NSF Certified
Warranty Period: 2-Year Limited
Part Number: UM025NFPRUXXA20-QUDSBAN1-GMA
Accuracy (% of Reading) Factory Calibrated with Computer: ± 2.0% *
Maximum Viscosity: (Water)
Housing Material: Sch 80 PVC
Signal Generator: PEI (Ultem 1000)
Seals: EPDM
Display Function: Rate, Velocity, 2 Totals (1 Resettable, 1 Cumulative)
Battery Power: Lithium C
Local Computer Calibrations: Factory & Field
Local Module & Output Signal: None
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Totalizing Resets to 0 After Reaching: 99999999
Applications (always check Chemical Compatibility Guide): Irrigation & Fresh Water, Industrial Effluent Water, Cooling Systems, Groundwater Remediation, Sub-metering, Plant Water, etc.
Not Suitable For Applications: Non-water applications; Trade applications; Not approved for use with petroleum products (diesel fuel, unleaded gasoline, jet fuel, kerosene, etc.), aromatic hydrocarbons or other incompatible chemicals; Not approved for use in hazardous locations; Not suitable for Freezing or Steam applications. See owners manual for full details.
Minimum Straight Pipe Dia.s: 10" Upstream / 5" Downstream
Piping Notes: For PVC piping only. See owners manual for full details.
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds, Line must be full (no air) for proper accuracy
Connection to Connection Length (OAL): 6.5" (165 mm)
Shipping Weight (Approximate): 3.0 lbs (1.36 kg)
Approvals Notes: NSF, IP67, CE
