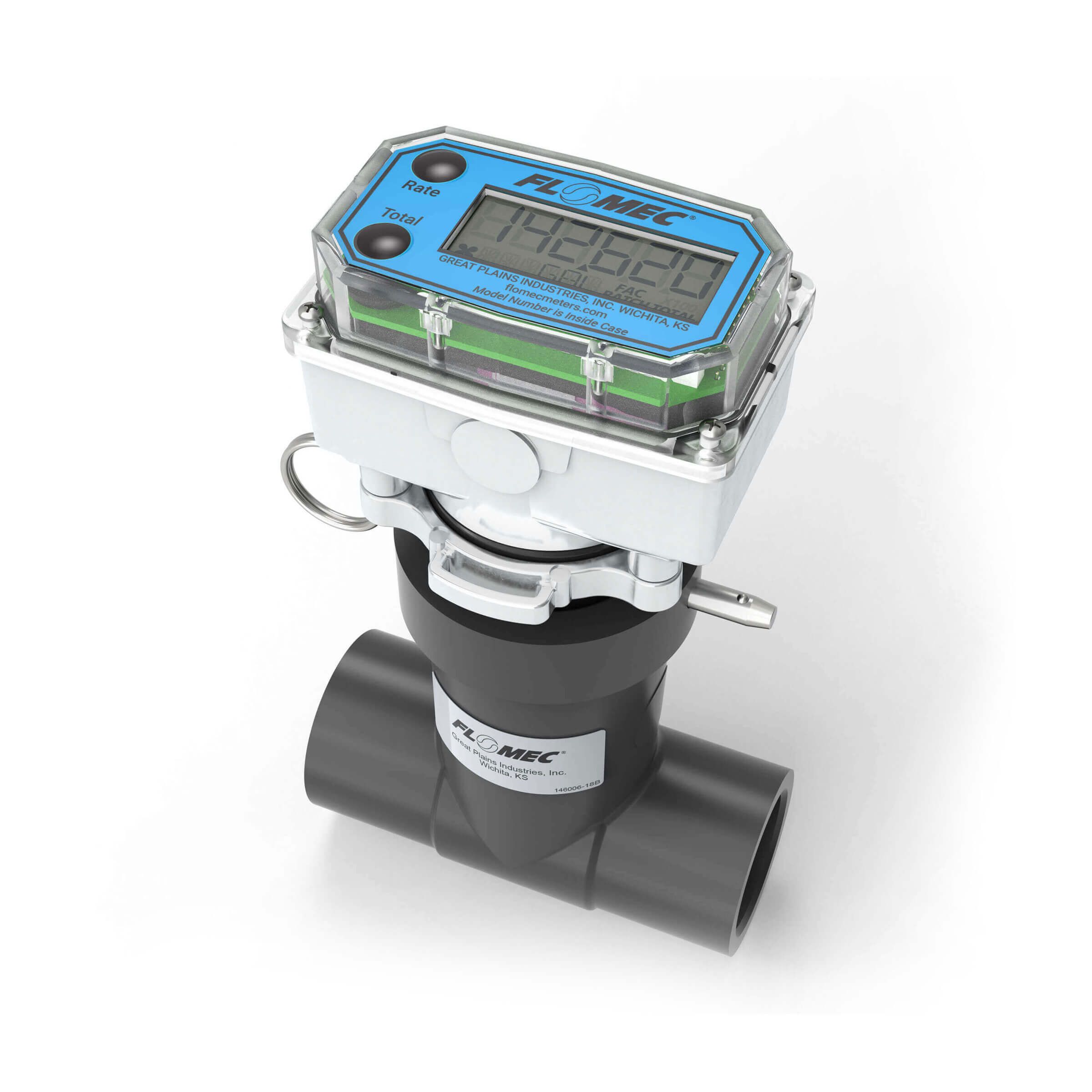

UM-025-S-Q Aquasonic Flow Meter PVC 1"
1" Female Socket Sch 80 PVC
Rate & Totals
$1239.00
Main Specifications
Connection Size: 1"
Connection Type: Female Socket
Flow Range: 0.22-33 GPM (0.83-124.92 LPM) - 0.1 to 15 fps (0.03 to 4.57 m/s)
Pressure Rating: 203 PSI (14 bar) @ 73°F, 150 PSI (10 bar) @ 140°F
Operating Temp With Local Computer: 32°F to 140°F (0°C to 60°C)
Body Type: PVC Tee
Local/Remote Display: Local
Display Type: Digital LCD
Factory Calibrated For: Water
Product Type: Rate & Totals
Std Calibration Reports Included: No
Benefits & Features: Low Cost; Easy Installation; No moving parts; High Accuracy ±2% of reading); Low Flow Rates; Compatible with most common name brand irrigation controllers; Extended leak detection down to 0.1 fps; LED light indicators; NSF Certified
Body Type: PVC Tee
Warranty Period: 2-Year Limited
Part Number: UM025SKPRUXXA20-QUDSBAN1-GMA
Max Pressure Drop (at Max Flow in test conditions): 0
Accuracy (% of Reading) Factory Calibrated with Computer: ±2.0%
Rotor: None
Housing Material: Sch 80 PVC
Seals: EPDM
Typical K-Factor PPG (PPL): See Manal
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Totalizing Resets to 0 After Reaching: 99999999
Local Module & Output Signal: None
Sensor (Pickup): Transducer
Battery Power: (2) AAA Alkaline Batteries
Remote Output: None
Display Function: Rate, Velocity, 2 Totals (1 Resettable, 1 Cumulative)
Application Notes: Unidirectional, Can mount Horizontally or Vertically, Can use for Gravity Feeds. Line must be full (no air) for proper accuracy.
Applications (always check Chemical Compatibility Guide): Commercial Irrigation; Landscape Irrigation; Clean water flow measurement
Not Suitable For Applications: Non-water applications; Trade applications; Not approved for use with petroleum products (diesel fuel, unleaded gasoline, jet fuel, kerosene, etc.), aromatic hydrocarbons or other incompatible chemicals; Not approved for use in hazardous locations; Not suitable for Freezing or Steam applications. See owners manual for full details.
Minimum Straight Pipe Dia.s: 10" Upstream / 5" Downstream
Piping Notes: For PVC piping only. See owners manual for full details.
Connection to Connection Length (OAL): 4.25" (108mm)
Shipping Weight (Approximate): 2.0 lbs (0.9kg)
Approvals Notes: NSF, IP67, CE
