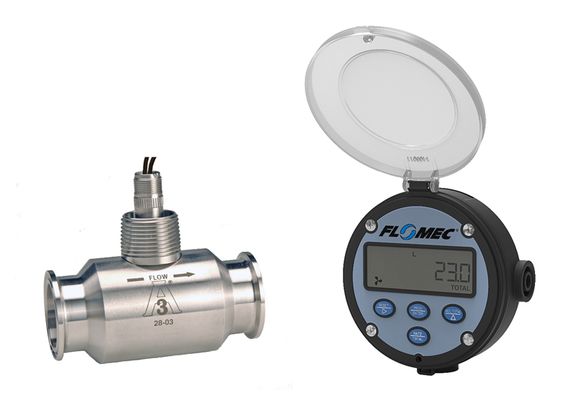

GSCPS-200-RT14FM-10F Precision Sanitary 3A 316SS Flow Meter 1-1/2"TC Remote Display and 4-20mA Out

2" Tri-Clamp

Rate & Totals, 4-20mA & Pulse Output (Remote)

$4100.00
In Stock
Lead Time: 1-2 Days
Main Specifications
Connection Size: 2"
Connection Type: Tri-Clamp
Flow Range: 33 - 330 GPM
Body Type: 3-A Approved
Local/Remote Display: Remote
Display Type: Digital LCD
Factory Calibrated For: Water like fluids
Product Type: Rate & Totals, 4-20mA & Pulse Output (Remote)
Std Calibration Reports Included: Yes
Benefits & Features: The body meets strict 3-A Sanitary Standards using the new "Third Party Verification" (TPV) program; Internals are machined or polished to meet 3-A self-draining and cleaning requirements (Ra32); CIP, SIP, COP; High Accuracy: ± 0.5% (Linearity); Field Serviceable; 6 Digit Display - Floating Decimal; Rate of Flow; Batch & Cumulative Totals; Factory Calibrated and Field Calibratable; Choice of Gallons or Liters; Custom Programmable Display (including UOM)
Max Pressure Drop (at Max Flow in test conditions): 14 PSI
Accuracy (% of Reading) Factory Calibrated with Computer: ± 0.5%
Repeatability (based on test conditions): ± 0.1%
Recommended Strainer Size: 14 Mesh (1410 Microns)
Max. Particle Size: .056" / 1.410 mm
Maximum Viscosity: 100 cps<br>[For viscous fluids like oils, the temperature must not fluctuate more than ±5°F to avoid accuracy fluctuations]
Operating Temp Without Local Computer or With Remote Computer: -100 to 225°F (-74 to 107°C)<br>[SIP (Up to 1 hour) 285°F (140°C). Remove pickup, gaskets & clamps not rated to 285°F]
Bearings: PEEK
Shaft: 316SS
Thrust Bearings: PEEK
Rotor: CD4MCu Stainless Steel (Nickel Plated)
Rotor Supports: 316SS
Signal Generator: Not Wetted
Retaining Rings: 302SS/316SS
Display Function: Rate + 2 Totals (1 Resettable, 1 Cumulative)
Local Computer Calibrations: Factory & Field
LCD Digits: 6
Totalizing Display Starting Increment: 0.01
Totalizing Resets to 0 After Reaching: 99999999
Typical K-Factor PPG (PPL): 183
Local Module & Output Signal: 4-20mA & Pulse Outputs (see data sheet)
Sensor (Pickup): Magnetic
Battery Power: 3.6V Battery (~2 year life)
External Power: Regulated 8-24VDC (opt'l)
Frequency Range: 100 - 1000 Hz
Remote Output: (Pulse Out)
Application Notes: See page 5 in the manual for 3-A Recommended Practices, Unidirectional, Line must be full (no air) for proper accuracy
Piping Notes: If pump, valve, etc. is upstream, need min. 20" Upstream
Connection to Connection Length (OAL): 6.063" (154.0 mm)
Shipping Weight (Approximate): 13 lbs (5.9 kg)
Approvals Notes: Only the turbine body is 3-A Approved; See catalog page for full approval specs
